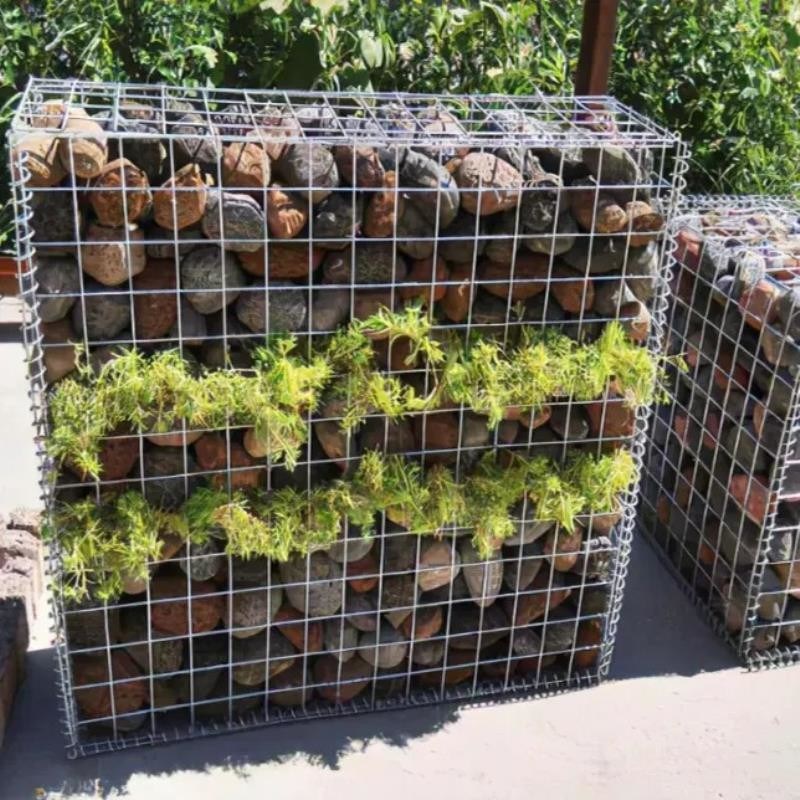

Welded Gabion Wire Mesh Box Galfan Coated Gabion Walls Gabions for Stones
Welded Gabion Wire Mesh Box Galfan Coated Gabion Walls Gabions for Stones
Product Description ----------------------------------------------------------------------------------------------------------------------------------------------------------
Our factory chooses high-quality raw materials to ensure the safety and comfort of your supplies.
① Low-carbon steel wire, which is protected by hot galvanizing or cold galvanizing. The thickness of galvanized protective layer is made according to customer requirements, and the normal galvanizing amount is 20-300g/m2m.
② Galfan coated wire(zinc 5% aluminum or zinc 10% aluminum), with corrosion resistance more than three times that of traditional pure zinc plating, and tensile strength of the steel wire not less than 380Mpa.
③ PVC/PE galvanized steel wire, wrap a layer of PVC or PE protective layer on the surface of high-quality low-carbon steel wire to increase protection in high pollution environments, and choose different colors to blend with the surrounding environment.
④ Stainless steel wire, which has strong anti-corrosion performance.
Can be Assembled by springs, C-rings. Reinforced by Hooks.
Product Specifications --------------------------------------------------------------------------------------------------------------------------------------------
|
Gabion Model
|
Gabion Size (m)
|
Wire Diameter (mm)
|
Mesh Opening (mm)
|
Surface Treatment
|
|
BZ-01
|
2x1x1m
|
|
Square mesh:
50x50
75x75
100x100
150x150
Rectangle mesh:
30X50
30X80
50X80
50X100
100X150
100X200
|
Electro galvanized
Hot dip galvanized
Galfan coated
(Zinc-5%Al Aluminum)
(Zinc-10%Al Aluminum)
PVC coated
|
|
BZ-02
|
2x1x0.5m
|
|
BZ-03
|
1.5x1x1m
|
|
BZ-04
|
1x1x1m
|
|
BZ-05
|
1x1x0.5m
|
|
BZ-06
|
1x0.5x0.5m
|
|
BZ-07
|
1x0.8x0.3m
|
|
BZ-08
|
1x0.5x0.3m
|
|
BZ-09
|
1x0.3x0.3m
|
|
Note: All sizes can customized according to your request.
|
Our Gabion box is made from strengthened hot dipped galvanized or zinc-aluminium coated steel which delivers exceptional corrosion resistance.
Welding Procedure ---------------------------------------------------------------------------------------------------------------------------------------------------
Galvanized After Welding
welding first and then galvanizing, the surface of the welded mesh panle is more flat and beautiful.
Galvanized Before Welding
galvanizing first before welding, with obvious solder joints.
Firm Welding Spots
tightly welded steel wires form a stable grid panel that is not easily broken.
Gabion Box Advantage ----------------------------------------------------------------------------------------------------------------------------------------------
Technology
Material: low carbon steel wire
Wire diameter:3.0-6.0mm
Surface: passivation and plasticization of electro-galvanized, hot-dip galvanized, plastic coated, dip-coated or Galvan
Color: silver, green. etc
The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as
per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick
PVC Coating.
Features
Durable structure with greater strength.
Better shape control.
Utmost corrosion resistance.
Easy to assemble.
Aesthetically appearance.
Welded Mesh Gabions are constructed using square electro welded weld mesh panels of high tensile steel. They are increasing in popularity due to their comparative ease and speed of installation.
They are an economical environmental solution for structural retaining walls and coastal defences.
Product Applications ------------------------------------------------------------------------------------------------------------------------------------------------------
Welded gabions can be used for protection mesh: river bank protection gabion, gabion retaining wall, soil protection gabion, road isolation and protection gabion, slope protection gabion fence, gabion flood control retaining wall, etc.
Welded gabions can be applied to buildings: gabion fence and gate, gabion building external wall, garden gabion, landscape gabion, animal gabion fence, poultry gabion cage, etc.
Welded gabions can be used for decoration: flower bed gabion, gabion bench, lawn gabion, gabion sculpture, lampshades, gabion stools, gabion fire pits, etc.
Company Profile --------------------------------------------------------------------------------------------------------------------------------------------------------------
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh,stainless steel welded wire mesh,PVC welded wire mesh,crimped wire mesh,galvanized woven wire mesh,stainless steel woven wire mesh,chain link fence,steel fence,welded wire mesh fence panels,PVC euro fence,358 anti-climb fence,razor wire,Hesco Barrier,Gabion Box and so on.Since its beginning,we have been working at four points, they are High Quality,Quick Delivery,Better Price and Thorough Service,Rely on the product quality and our credit standing, we have got favourable comments from the customers.The company introduces precise making machines and technics,combinning scientific inner managing method and quality control system.Since the year it was established ,we developed our powder and credit standing and got reliances of our customers in home and abroad.Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole county an some aabroad countries,such as Southeast Asia,Middle East,Ameria,Japan,and some Africa countries.
Certifications --------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ ---------------------------------------------------------------------------------------------------------------------------------------------------------------
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are Tray, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
